Error on GIGA R1 WiFi silk

An error has been identified on the silk (the printed text and markings) of some Arduino GIGA R1 WiFi boards. Specifically, there are two mislabeled pins at the bottom of the board. To clarify:

  • The 5V pin is located to the right of the GND pin and directly below the 74 pin.
  • The 3.3V pin is located to the right of the VIN pin.

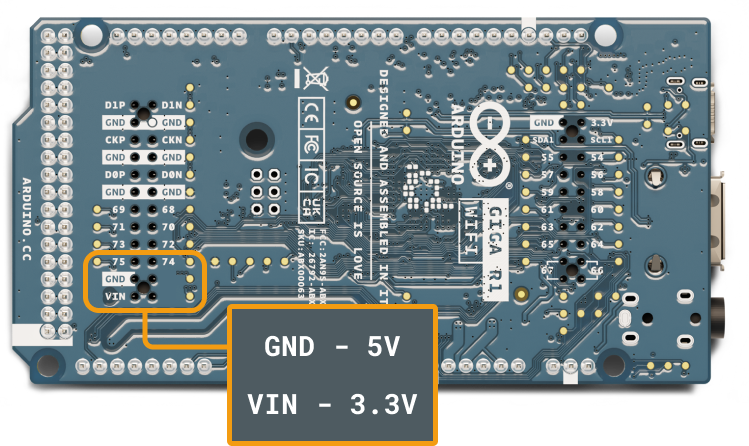

Corrected Arduino GIGA R1 WiFi markings. Highlighted are the 5V pin (right of GND and below 74) and the 3.3V pin (right of VIN).
