AP_SimpleWebServer
is a simple web server to manage an LED with AP features. The boards which support the WiFi Nina library are:
- MKR 1010
- UNO WiFi rev2
- Nano 33 IoT
- MKR VIDOR 4000
Having the AP_SimpleWebServer
sketch example already uploaded in the board, if the serial monitor shows the “Create access point failed” error, troubleshoot it following this steps:
-
Initialize the parameters as below:
- ssid: the SSID (Service Set IDentifier) of the created Access Point.
- passphrase: optional, the WPA password of the created Access Point.
Note: The ssid and passphrase must be 8 or more characters. Otherwise the serial monitor will display this error.
-
Upload the
Ap_SimpleWebServer
sketch again, then open the serial monitor. -

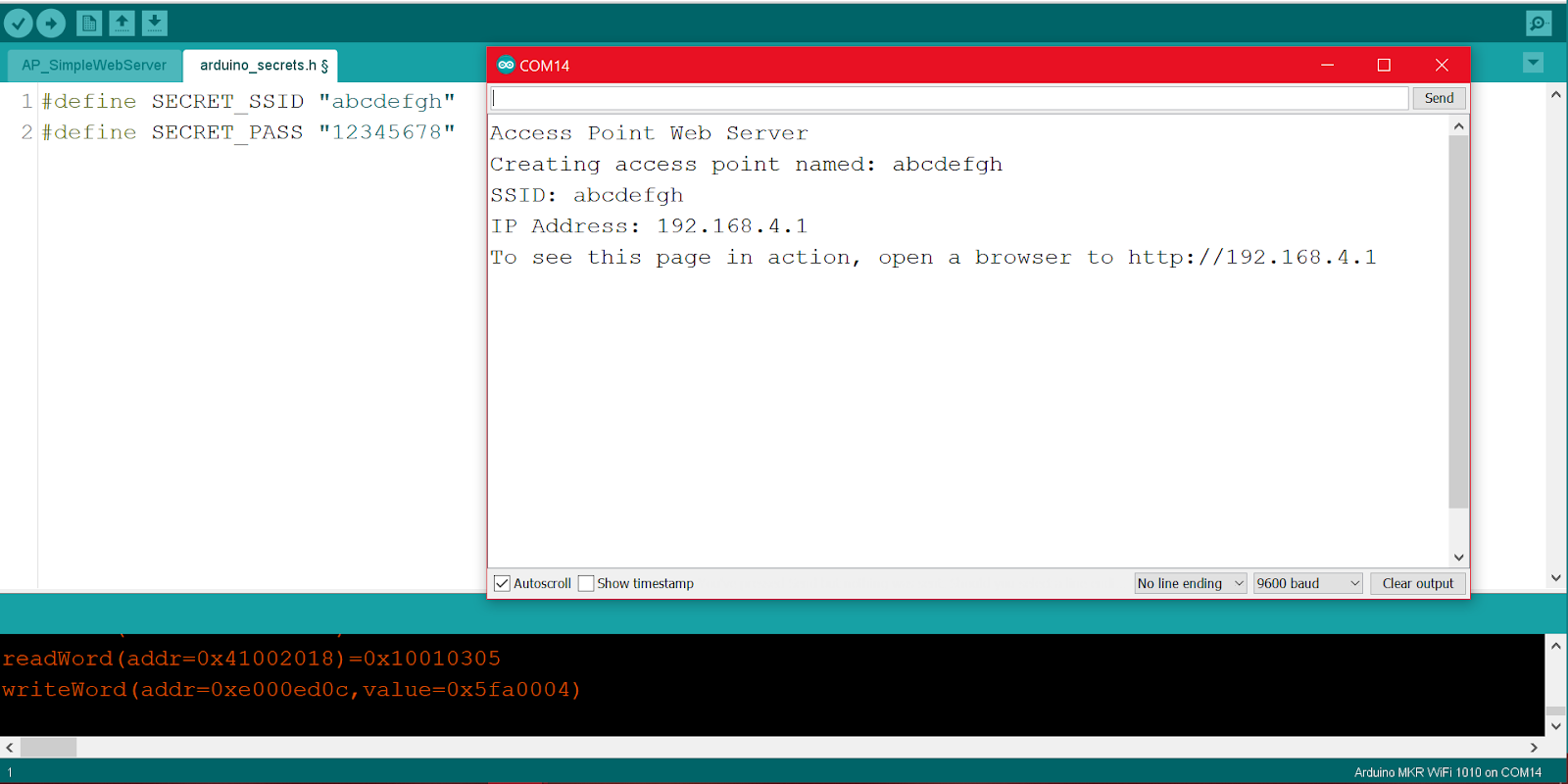

Now, the board needs to connect to the Wi-Fi named with SSID: “abcdefgh” in your Wi-Fi networks.
-
Once the board is connected, open the web browser and enter the IP address shown in the Serial monitor.
-
Finally, the LED of the board can be controlled over the Wi-Fi network.
