The IDE allows for multiple versions of the same core to be installed simultaneously. This can be useful for testing purposes, or for solving compatibility issues with a specific core version.

In this guide, we’ll create the appropriate folder structure and install a core.

1. Creating the folder structure

We will use <sketchbook> to refer to the location of your sketchbook folder.

Finding your sketchbook location

If you’re not sure where your sketchbook is, follow these steps:

1. Open the Arduino IDE.
2. Open the Preferences/Settings:
   • On Windows/Linux: Go to File > Preferences.
   • On macOS: Go to Arduino IDE > Settings (or Preferences).
3. Find the path listed under the Sketchbook location field.

By default, the sketchbook folder is located here:

• Windows: C:\Users\<username>\Documents\Arduino
• macOS: /Users/<username>/Documents/Arduino
• Linux: /home/<username>/Arduino

Designing the folder structure

To ensure proper library compatibility and resource loading, custom cores must be installed in a specific nested folder structure inside your sketchbook:

<sketchbook>/hardware/<vendor>/<architecture>/

• <vendor>: Any arbitrary, unique folder name representing the creator or source (e.g., arduino or arduino-git).
• <architecture>: The target board architecture (e.g., avr, samd, mbed, or esp32). For Arduino cores, this typically matches the x in ArduinoCore-x.

For example, a custom AVR core under the arduino vendor would look like:

Arduino/hardware/arduino/avr/

Step-by-step folder creation

Follow these steps to create the appropriate folders:

1. Navigate to your sketchbook folder.
2. Create a folder named hardware (if it does not exist) and open it.
3. Inside hardware, create a folder for your <vendor> (e.g., arduino) and open it.
4. Inside your <vendor> folder, create a folder for your <architecture> (e.g., avr).

---

2. Installing the core

The core can be downloaded with a web browser or by cloning the git repo.

Using your web browser

1. Download the repository from GitHub by clicking the Code button and selecting Download ZIP.
2. Extract the ZIP file contents directly into the <sketchbook>/hardware/<vendor>/<architecture> folder.

Using git

Simply navigate into <sketchbook>/hardware/<vendor> and clone the repo into a folder named <architecture>.

cd <sketchbook>/hardware/<vendor>
git clone <repo URL> <architecture>

If we wanted to clone arduino/ArduinoCore-avr into the vendor folder arduino, we’d use the following command.

cd <sketchbook>/hardware/arduino
git clone https://github.com/arduino/ArduinoCore-avr avr

Often the bugfix may not be on the main branch. After cloning the repo, we can switch branches with the following command:

git checkout <bugfix-branch>

---

3. Installing the ArduinoCore-API

The Mbed OS, SAMD, and megaAVR boards platforms (as well as AVR in the near future and any new platforms that are created) use ArduinoCore-API, which contains all the non-architecture specific code that can be shared between all core libraries. This must be installed in addition to the board platform.

Installing the ArduinoCore-API

Download and extract the API, or clone it, into a directory of your choice.

git clone git@github.com:arduino/ArduinoCore-API

Symlink the ArduinoCore-API

On macOS/Linux (using Terminal):

ln -s "<ArduinoCore-API_path>/api" "<core_path>/cores/arduino/api"

On Windows (using cmd.exe):

mklink /D "<core_path>\cores\arduino\api" "<ArduinoCore-API_path>\api"

---

4. Using the core

If the Arduino IDE is open, you must restart it to load and register the newly installed custom core.

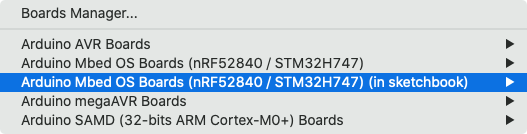

Once the IDE restarts, the new core and its associated boards will be available in the board selector:

• Arduino IDE 2.x: Select your board from the board dropdown or go to Tools > Board. The custom core boards will appear grouped under a category indicating they are located in the sketchbook.
• Arduino IDE 1.x: Go to Tools > Board > [core_name] (in sketchbook).
