Create a bootable microSD card for Arduino Pro Gateway

Flash the Arduino Pro Gateway image to a microSD card using balenaEtcher.

What you’ll need

  • A computer running Windows, macOS, or Linux
  • A microSD card reader (built-in or external)
  • A microSD card (16 GB or larger)

Steps

  1. Download and install balenaEtcher.

  2. Insert the SD card.

  3. Open balenaEtcher.

  4. Select Flash from URL and use this URL: https://downloads.arduino.cc/arduino_pro_gateway_for_lora/prod/sd_kit_image_releases/v1.1.0/20190206PROD_ArduinoProGateway_SD.zip

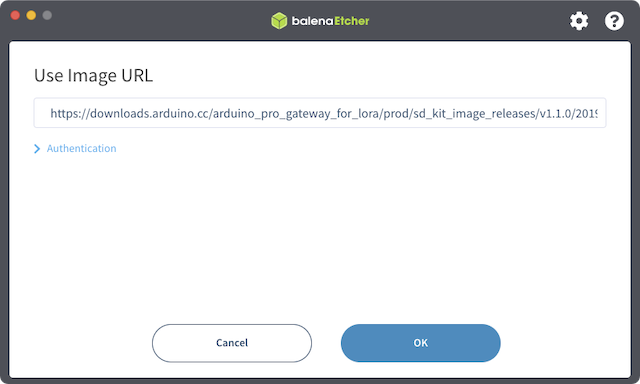

    Entering the image URL in balenaEtcher.

  5. In Select target, check the SD card as the target disk, then click Select.

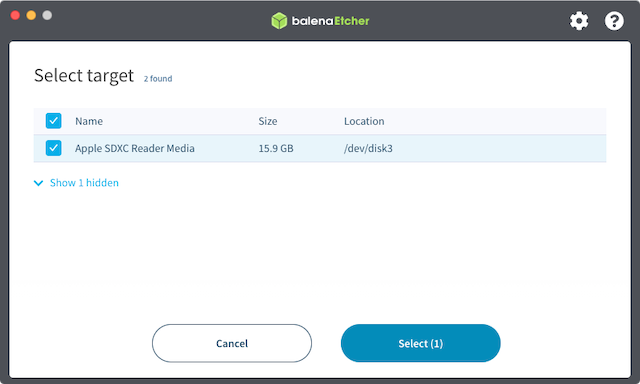

    Selecting the target.

  6. Finally, select Flash and wait for the process to complete.

    Flash complete message in balenaEtcher

If your Pro Gateway was already activated in Manager for Linux, follow these steps to reactivate the gateway:

  1. Deactivate the gateway in Manager for Linux.
  2. Activate the gateway in Manager for Linux.
